CNC Gang Tool Lathe CK46 52 76

Jingfusi praebet durabile CNC Gang Instrumentum Lathe CK46 52 76. Productum nostrum est melioris qualitatis, molendi et convertendi operationes integrandi ad efficientiam altam. In industriam experientiam habemus uberem, ita nobis placere contactus ad servitium comprehensivum.

Model:CK46/52

Mitte Inquisitionem

depictio producti

Jingfusi est a CNC Gang Tool Lathe CK46 52 76 fabrica. Praecipua nostri producti sunt hae:

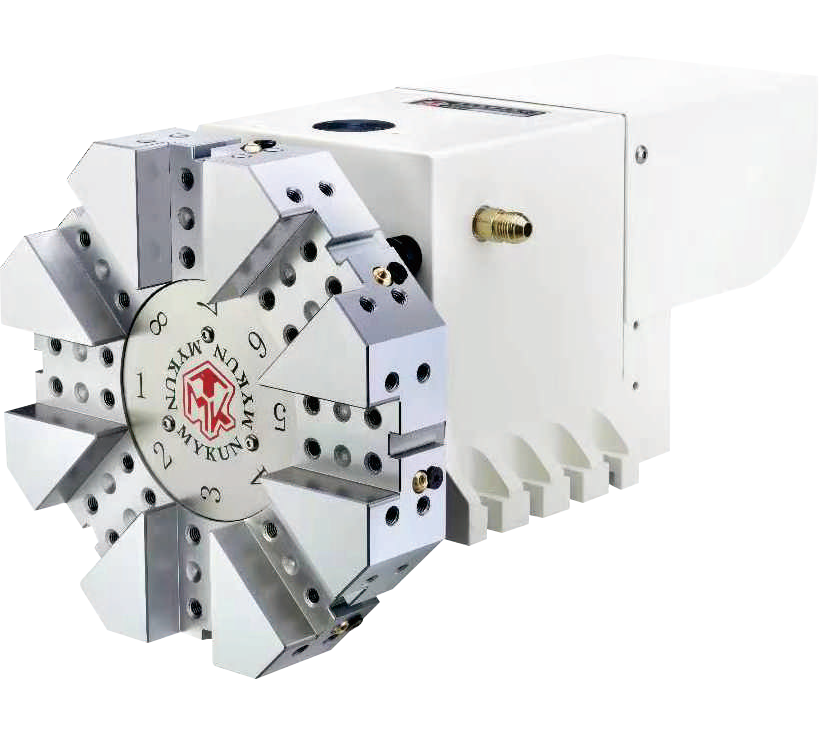

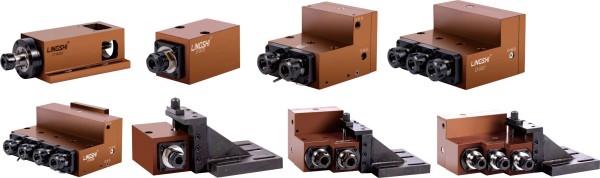

· Turribus instructi possunt, capita volare, capita virtutis, etc. Potestas capitis ab 0° ad 90° aequari potest ad milliendi et conversionis integrationem.

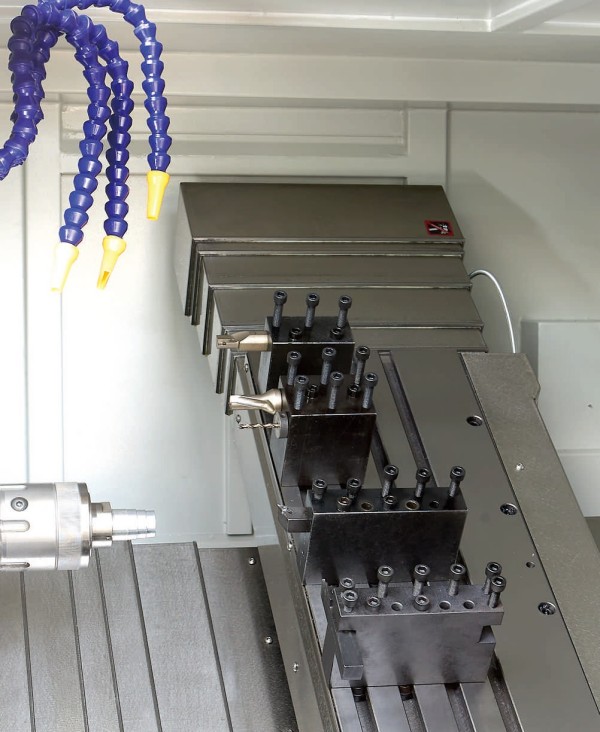

· Dilatata instrumentum possessor ad emendavit rigorem.
Potest machina immaculata chalybs, admixtiones titanium, chalybs carbonum et alia materia.
· Tota abiectio subit furnum, vibrationis tempus, aliosque senescentis processus ad diuturnum firmitatem invigilandum et apparatus instrumenti ifespan extendendus.

Praecipua Specification

Exemplar torno		unitas	CK46	CK52	CK76	Remart
Processus facultatem	Max adductius diametro super lectum	mm	400	400	400
	Maximum diametrum tuning	mm	Q160	160	160	Orbis
	Max.turning longitudinem	mm	380	380	380
	sidle ceterheight fom gound	mm	1080	1080	1080
	8000 vel 6000	-	A2-5	A2-6	A2-8
	Fusum genuit diametri	mm	056	066	086
	Maxime bar materia dameter	mm	45	51	072
	Maximum fusum celeritatem	rpm	4000	4000	2000
	Fusum motricium virtutis / torque	Kw/N.m	7.5Kw/47Nm	11Kw/72Nm	15Kw/143Nm
Axis pascite	Max.fast peregrinatione celeritas	m/my	24	24	24
	/Z/Y axis motor potentia/torque	Kw/N.m	YASKAWA1.3 KW/8.34Nm or SYNTEC1.8KW/rated115Nm	YASKAWA11.3 KW/8.34Nm or SYNTEC1.8KW/rated 11.5Nm	YASKAWA11.3 KW/68.34Nm or SYNTEC1.8KW/rated 11.5Nm
	X/Z-axis C3-gradus pila ANISOCYCLUM	-	32/32	32/32	32/32
	Z-axis oller dux rals	-	35/35	35/35	35/35
	X axiseffective peregrinatione	mm	1000	1000	1000
	Z axis effective itinerantur	mm	400	400	400
Equipmentspecifications	Machina rete pondus	kg	2600	2700	2800
	Totalis apparatus potentia	KW	10	13.5	17.5
	Apparatus L×W×H	mm	2100×1580×1800	2100×1580×1800	2100×1580×1800

Instrumentum machinae est constans cum optimized; quaeso referre t ipsas machinae notitias etiam pro parametris suprascriptis.

Libitum items

Configurationis item		CK46	CK52	Ck76
Pelagus Spindle	Mechanica fusum	●	●	●
Pelagus Spindle	Electric fusum	O	O	O
controller	SYNTEC moderatoris	●	●	●
controller	FANUC controller	O	O	O
Axis pascite	Yaskawa	●	●	●
Axis pascite	SYNTEC	O	O	O
Clamping	Fibulae recesserunt a	●	●	●
Clamping	3.1/15	O	O	O
Armorum auxilia	Materia accepto machinam	O	O	O
	Pascentium fabrica	O	O	O
	Pelagus Spindle	O	O	O
	automated robot	O	O	O
	oleum separator caligo	O	O	O
