Turn Molendinum CNC Lathe CK46 52

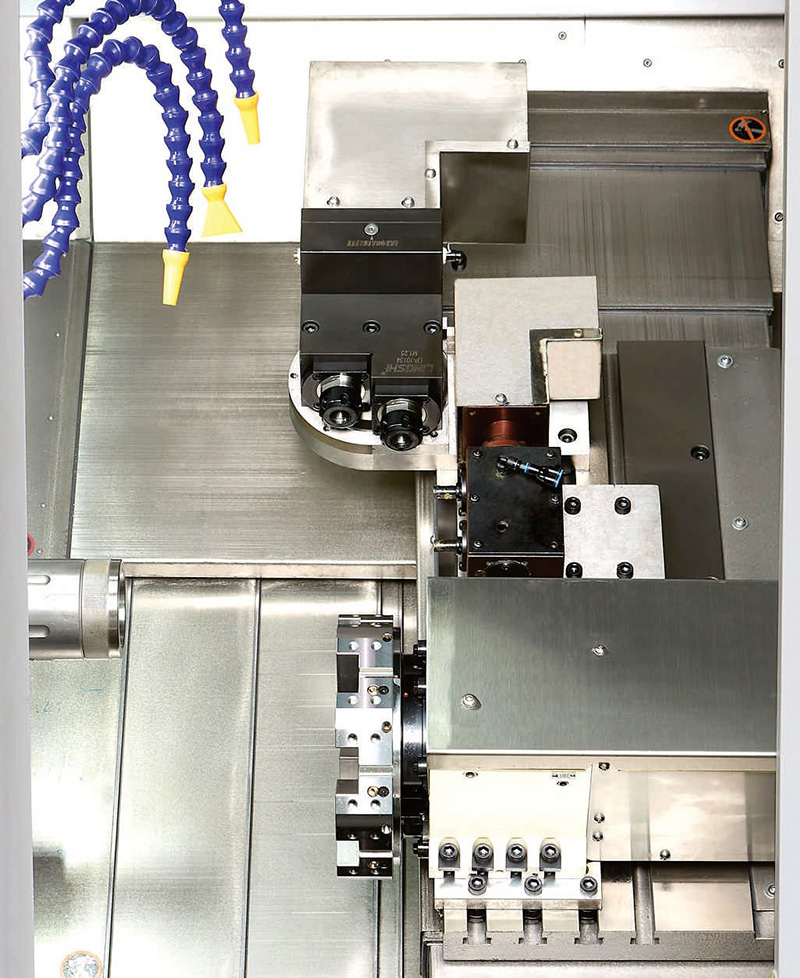

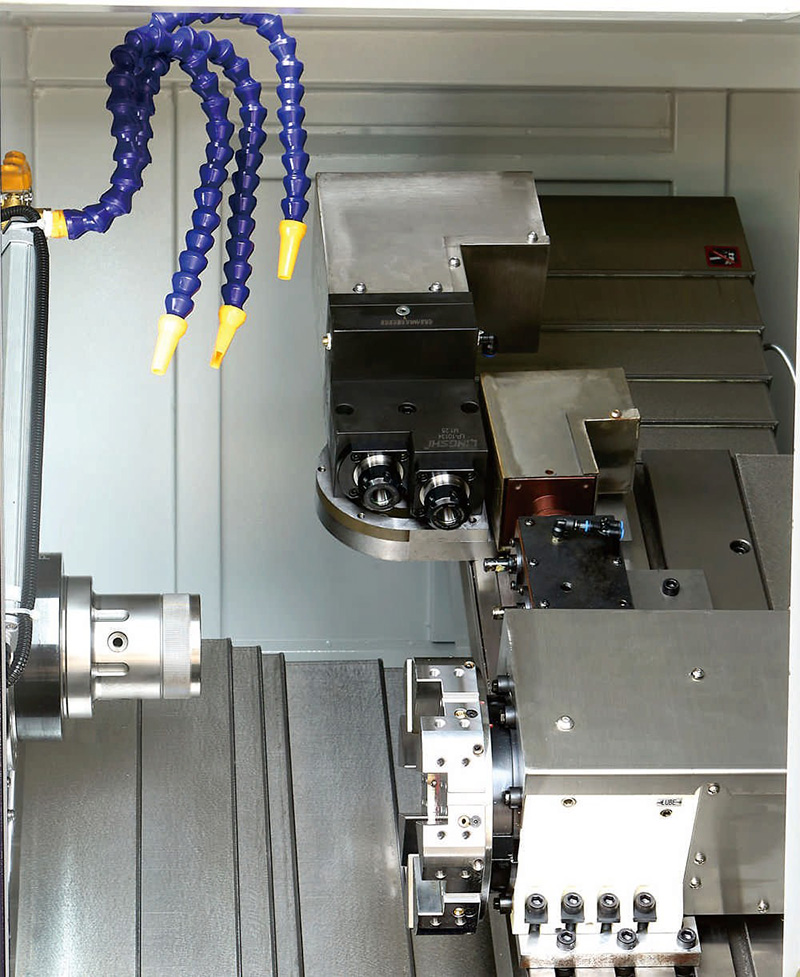

Jingfusi qualitatem praebet Turn Mill CNC Lathe CK46 52. Apparatus in cochleae potentiae capitis constructo instruitur, quod potest accurate molendinum parvum diametrum, parietem interiorem spirae striatae, parvae cochleae et striati olei varii. Secundum exigentias actuales processus, virtus capitis et turris mollius eligi potest ad augendum processui scaenae et operationis efficientiam.

Model:CK46/52

Mitte Inquisitionem

depictio producti

Jingfusi est Turn Molendinum CNC Lathe CK46 52 officina. Praecipua nostri producti sunt hae:

High movens celeritatem et excelsum processui efficientiam
● Caput interna virtute helica instructum, potest molere parvum diametrum internum parietem striati helici; clavi parvi, sulci et olei. Potestas capitis et instrumenti turricula instrui potest.
Dilatata instrumentum possessor laminam in melius rigiditate
● Materiae machinabiles includunt immaculatum chalybem, Titanium alys, et chalybem carbo.
Integra iactio subit furnum, tremulum tempus, et alios senescentes processus ad longum tempus invigilandum. stabilis machinis et instrumenti servitii machinis extendere vitam.

Praecipua Specification

Exemplar torno		unitas	CK46	CK52	Remart
Processus facultatem	Max adductius diametro super lectum	mm	400	400
	Maximum diametrum tuning	mm	Q160	160	Orbis
	Max.turning longitudinem	mm	380	380
Fusum	Fusum centrum altitudinis a terra	mm	1080	1080
	8000 vel 6000	-	A2-5	A2-6
	Fusum genuit diametri	mm	56	Q66
	Maxime bar diametri	mm	45	051
	Maximum fusum celeritatem	rpm	4500	4000
	Fusum motricium virtutis / torque	Kw/N.m	7.5Kw/47N.m	11Kw/72N.m
Servo Turret	Servo Turet MK-63RSV-8T		No	No	Libitum
X/Z/Y axi pascens	Max.fast peregrinatione celeritas	m/my	24	24
	Virtus caput motoris	Kw/N.m	YASKAWAI 1.3 KW/8.34Nm or SYNTEC 1.8KW/11.5Nm	YASKAWAI 1.3 KW/8.34Nm or SYNTEC 1.8KW/11.5Nm
	/Z-axis C3-gradus pila ANISOCYCLUM	-	32/32	32/32
	/Z-axis cylindro duce cancellos		35/35	35/35
	X axiseffective peregrinatione	mm	1000	1000
	Z axis effective itinerantur	mm	400	400
Equipmentspecifications	Machina rete pondus	kg	2600	2700
	Totalis apparatus potentia	KW	12	15.5
	Apparatus L×W×H	mm	2100×1580×1800	2100×1580×1800

Instrumentum machinae continenter optimized est; quaeso referre ad ipsas notitias machinae instrumentorum suprascriptorum parametri.

Libitum items

Configurationis item		CK46	Ck52
Pelagus Spindle	Mechanica fusum	●	●
Pelagus Spindle	Electric fusum	o	O
controller	SYNTEC moderatoris	●	●
Axis pascite	Yaskawa	●	●
Axis pascite	SYNTEC	O	O
Clamping	Fibulae recesserunt a	●	●
Potestas capitis	Internum spirae caput	●	●
Potestas capitis	Parte / finem faciem potentia caput	O	O
flush	VIII workstations	O	O
flush	XII workstations	O	O
Armorum auxilia	Partes colligere fabrica	O	O
	Pascentium fabrica	O	O
	Pelagus Spindle	O	O
	automated robot	O	O
	Oleum separator caligo	O	O
