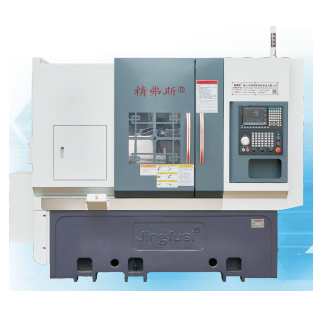

CNC Turret Type Automatic Lathe

Nos voluit ad introducendam ad Jingfusi® High-finem cnc Turret Type Automatic Lathe, intendens ad penitus vestri scientiam huius eximia uber. Nos welcome et nostra novus et aestimantur customers ut permanere eorum societate nobiscum ut contendunt ad clariorem futurum.

Model:CK52T-600

Mitte Inquisitionem

depictio producti

Vos autem cordialiter invitavit ad visitare nostri Factory et explorandum tardus, competitive, pretium, et summo-qualitas Jingfusi® cnc Turret Type Automatic Lathe, currently in altum demanda. Nos avide praevenire occasionem ut collaborate tecum.

CNC Turret Type Automatic Lathe Product Details

CNC Turret Type Automatic Lathe Parametri List

project	Contentus	unitas	Ck52t-DC	Ck76t-DC	Ck46t-DC
Processing scope	Maximam gyrationis diameter de fusum	mm	Diam DCCC
	Typus obstructionum	mm	Diam CLXXX ~ CD
	Maximam longitudinem	mm	560
	Maximum Bar diameter	mm	Diam LI LV	LXXII diam	Diam XLV
principalem axem	Type fusum caput		A2-6	A2 -8	A2-5
	Fusum per-foraminis diameter	mm	Diam LXVI	Diam LXXXVI	Diam LVI
	Maximum Spindle celeritate	R / min	4200	3200	6000
	Set Spundle	R / min	I ~ MMMD	I ~ MMD	I ~ (IV) D
pascere	Maximum peregrinatione ex X / z axem	mm	230/600
	Z-axis efficax ictum	mm	570
	Maxime Fast motus ex X / Z axis	M / mea	24
	X / Z axis occasum pro ieiunium motus	M / mea	16/18
	X / Z axis Rollerus Screw Specifications	mm	40
	X / Z axis MAGE Gauge Specifications	mm	35/45
Duodecim positus servo Turret	Duodecim positus servo Turret Center Altitudo		100
	Cultrum turrim oppositum (exterius diameter)	mm	385
	Centrum altitudinis Turret	mm	100
	Numerus Turret Laminae	fix	12
	Interitum diameter de adjacent tool processus	mm	Ø180
	Fixum Tool Holder Size	mm	25x25
	Cultro Holder Diameter	mm	Ø25
electrica machinery	Main motricium potentia / Torque	KW / NM	11Kw / rated 72nm	15KW / rated 98nm	7.5 KW / rated 47nm
	X / Z-Axis motricium Power / Torque	KW / NM	Yaskawa 1.8kw / 11.5nm. Libitum Novum Generation 2.4 KW / rated 11.5nm
	Power / Torque de Turris Tool Motending motricium	KW / NM	Generation 1.0 KW / 3.1NM
	Refrigerant Ratio Motor Power	KW	0.3
	Princeps pressura refrigerationem ratio motricium potestatem	KW	3
Tailstock	Tailstock plaga	mm	420
	Maximam plaga tailstock ejector pin	mm	100
	Tailstock ejector Pin coegi forma		Hydraulicarum fortis rigiditate
	Tailstock top foramen acus pyramam foraminis taper	Mk	Mohs V #, non adductius et stamine durante praecisione machining.
	Maxime intervallum tip et Chuck	mm	690
alius	Lecto inclinatio	°	XXX ° aut XV °
	Apparatus instrumentum longitudinem x latitudine x altitudine	mm	2500x1600x1700
	Totalis pondus totius machinae	Kg	Totalis pondus totius apparatus 4500kg cum libitum totalis pondus 3500kg, minus (X) Yuan
	Summa	KW	20
	Mediocris potentia consummatio	KW / h	3

CNC Turret Type Automatic Lathe machina tool accurate

Apparatus accurate, Jingfus factor Latin:
Maior test item	Schematic diagram	Deprehensio modum	Factory vexillum


Fusum radialis pulsu		Deprehendere runout de pyramidis	0.0025


X Axis repetere situ		Deprehendere repetita positioning X axis. Nota primum praedicere de L temporibus offset error frigoris engine calidum engine et deprehendere repetita positioning.	0.0025


Z-axis repetere situ		Detect repetita positioning in z axis. Nota primum praedicere de L temporibus offset error frigoris engine calidum engine et deprehendere repetita positioning.	0.0025


Si mos vult temptare ISO vel VD1 accurate X / Z / Axis AXIS, erit determinari tempore scribere contractus. Et mos est probare hoc item simul in initial acceptatio Jingfusi Factory.
