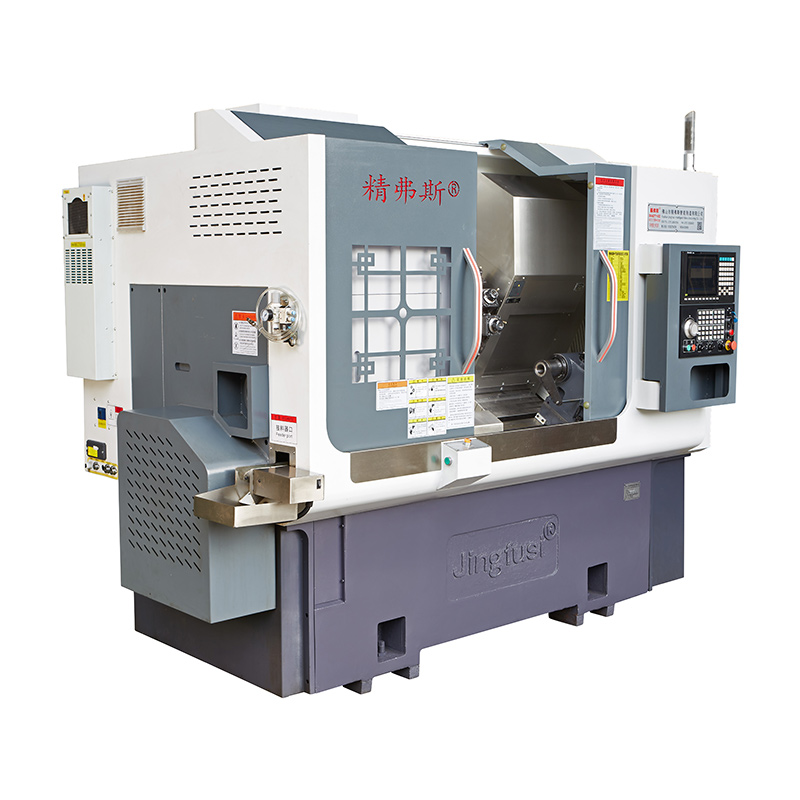

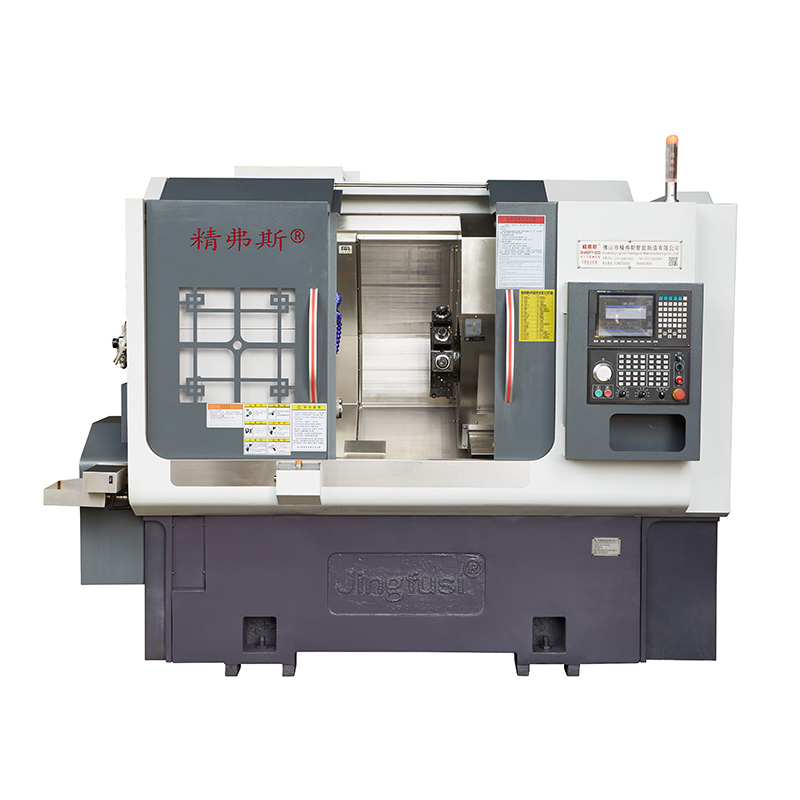

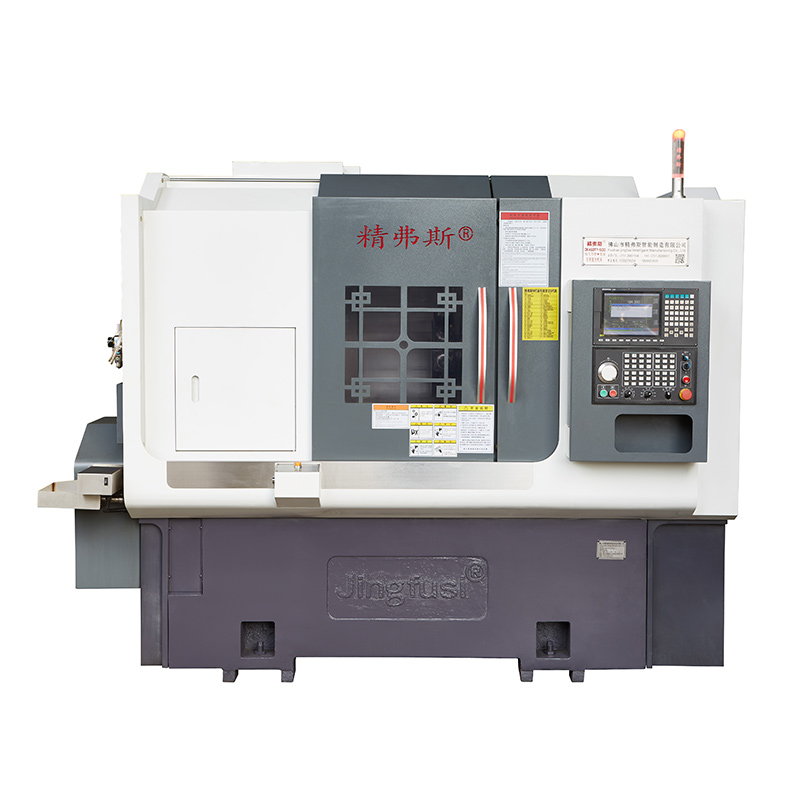

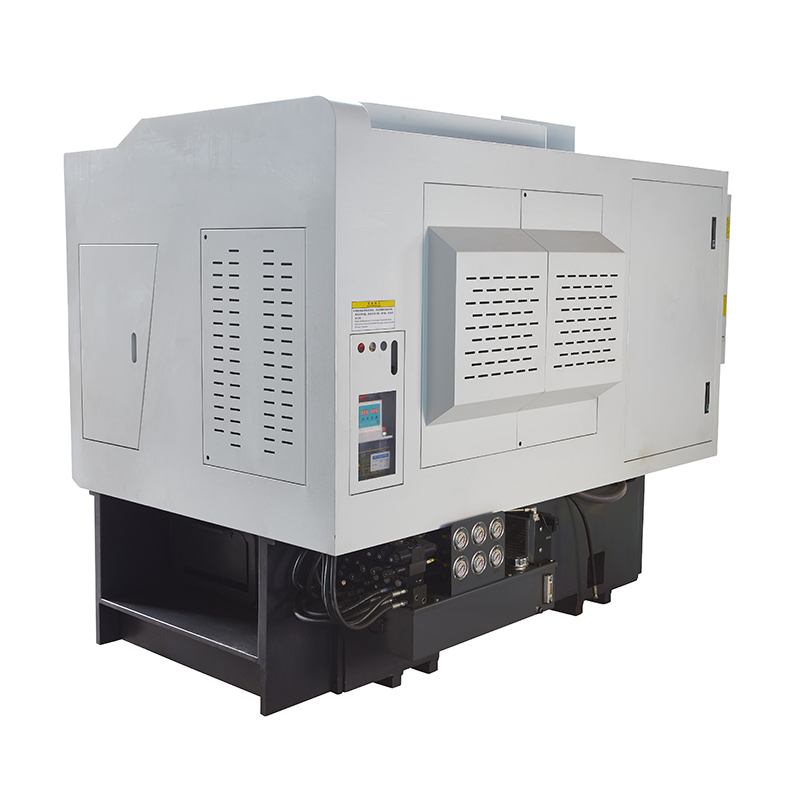

Automatic conversus et Milling machina

Automatic turre conversus et milling machinis typically habere tool turris, quod potest habere plures cutting tools. Turret potest esse automatice indexed eligere convenientem instrumentum pro se machining operatio, redigo setup tempus et augendae efficientiam.

Model:CK46DTY

Mitte Inquisitionem

depictio producti

Hi automatic turre conversus et milling machinas potest etiam praestare milling operationes, permittens pro creatione complexu figuris, features, et Venustates movens in secans instrumentum in variis directiones. Milling expands in machining capabilities ex machina ultra simplex conversus.

Machina Travel Diagram

Automatic Turret Turning and Milling Machine

Product Details

Parameter List

item	Model of Lathe	unitas	Ck52dty	Ck76dty	Ck46dty
Processing scope	Maximam gyrationis diameter de fusum	mm	Diam DCC
	Maxime conversus exteriores circuli longitudinem	mm	520
	Maximum Bar diameter	mm	Diam LV	LXXII diam	Diam XLV
principalem axem	Maximum Spindle celeritate	R / min	(IV) CC (occasum MMMD)	MMMCC (occasu MM)	(VI) (Set (IV) D)
	Type fusum caput		A2 - VI	A2 -8	A2 - V
	Fusum per-foraminis diameter	mm	Diam LXVI	Diam LXXXVI	Diam LVI
pascere	X / z / y axis maximum plaga	mm	CCLX / D / ± LX
	XC ° Power caput transiens per centrum de fusum	mm	30
	Maxime ieiunium motus ex X / z / axis	M / mea	XXIV (occasum XVI) / XXIV (occasum XVI) / XIV (occasum VIII)
	X / z / y axis stupra virga	mm	40
	X / z / y axis cylindro semita	mm	35/45/35
Power Turret	Power Turret Model (Power Turret)	BMT	BMT55
	Power caput collet	Est	Er32
	Fixum Tool Holder Size	mm	25x25
	Perit possessor Shank diameter	mm	Ø32
electrica machinery	Main motricium potentia / Torque	KW / NM	11Kw / rated 72nm	15KW / rated 98nm	7.5 KW / rated 47nm
	X / z / y axis motricium potentia / torque	KW / NM	Yaskawa 2.9 KW /18.6nm,optional nova generation3.1 KW / 15nm
	Power / Torque de Turret Power caput motricium	KW / NM	Generatio 3,1 KW / 15nm
	Maxime celeritas de Turret Power motricium	R / min	(VI) (occasum (IV)), commune Speed≤4000
	Power caput motricium potentia / Torque	KW / NM	3.1 KW / 15nm
	Power / Torque de Turris Tool Motending motricium	KW / NM	Generation.0 KW /3.1nm
Tailstock	Tailstock plaga	mm	520
	Maximum Hydraulicarum ictum Tailstock	mm	100
	Tailstock top foramen acus pyramam foraminis taper	Mk	Mohs V #
	Maxime intervallum tip et Chuck	mm	690
alius	Fusum positioning fregit fabrica		HYDRAULICUS, libitum programmable
	Lecto inclinatio	°	XXX ° aut XV °
	Apparatus instrumentum longitudinem x latitudine x altitudine	mm	2500x1680x1900
	Totalis pondus totius machinae	Kg	5000KG
	Summa	KW	20
	Mediocris potentia consummatio	KW / h	3

Machina tool accurate

Apparatus accurate, Jingfus factor Latin:
Maior test item	Schematic diagram	Deprehensio modum	Factory vexillum


Fusum radialis pulsu		Deprehendere runout de pyramidis	0.0035


X Axis repetere situ		Deprehendere repetita positioning X axis. Nota primum praedicere de L temporibus offset error frigoris engine calidum engine et deprehendere repetita positioning.	0.003


Z-axis repetere situ		Detect repetita positioning in z axis. Nota primum praedicere de L temporibus offset error frigoris engine calidum engine et deprehendere repetita positioning.	0.003


Y Axis repetere situ		Deprehendere repetita positioning in axis y. Nota primum praedicere de L temporibus offset error frigoris engine calidum engine et deprehendere repetita positioning.	0.004


C axis repetere situ		Detect repositioning C-Axis fixum punctum note: primum praedicere de L temporibus offset errorem frigoris engine et calidum engine et deprehendere repetita positioning	XX arcu seconds


C axem positus gyratorius		Deprehendere temere situ accurate C-Axe, Nota: primo praedicere de L temporibus offset errorem frigoris engine calidum engine et reprimendam repetita occasus	LXXII arcum seconds


Power caput clamping beat		Pulchra	0.015

Power caput clamping beat		Clamping verberans	0.01

Si mos vult temptare ISO vel VD1 accurate X / Z / Axis AXIS, erit determinari tempore scribere contractus. Et mos est probare hoc item simul in initial acceptatio Jingfusi Factory.
