Products > Conversus et Milling Combinatae quaevis
>

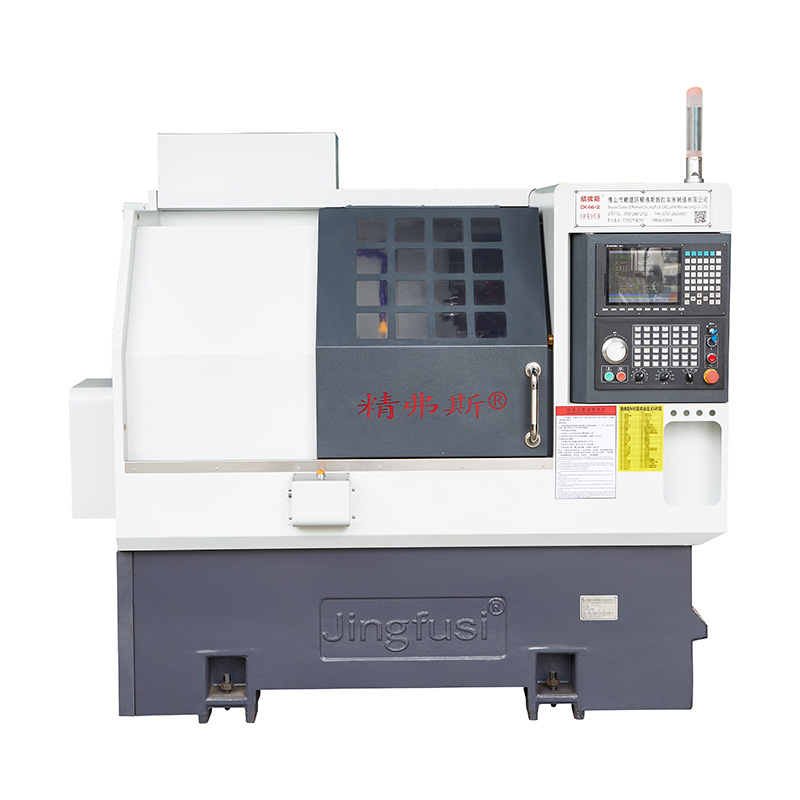

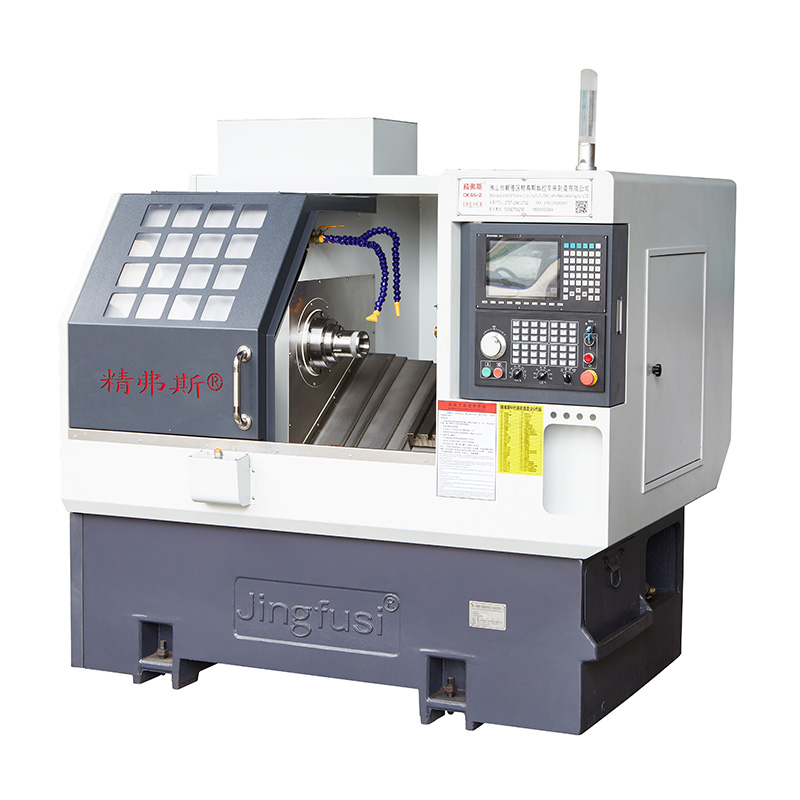

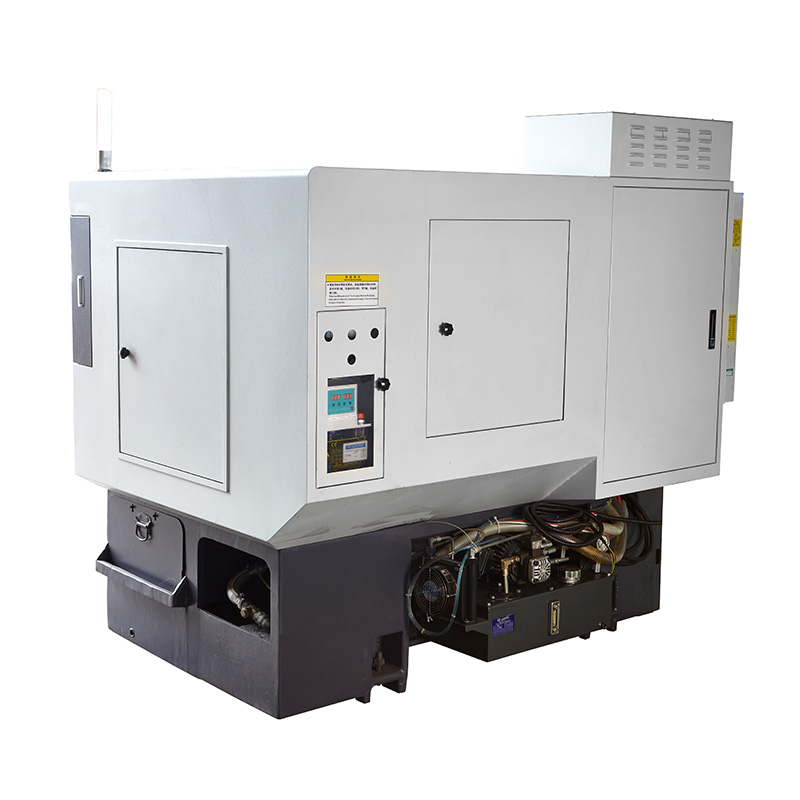

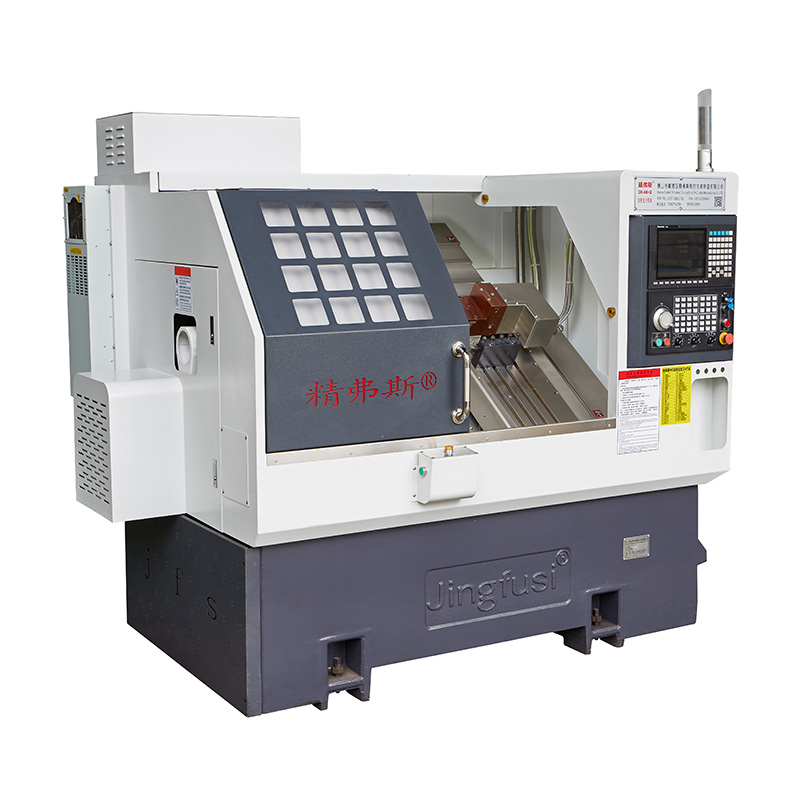

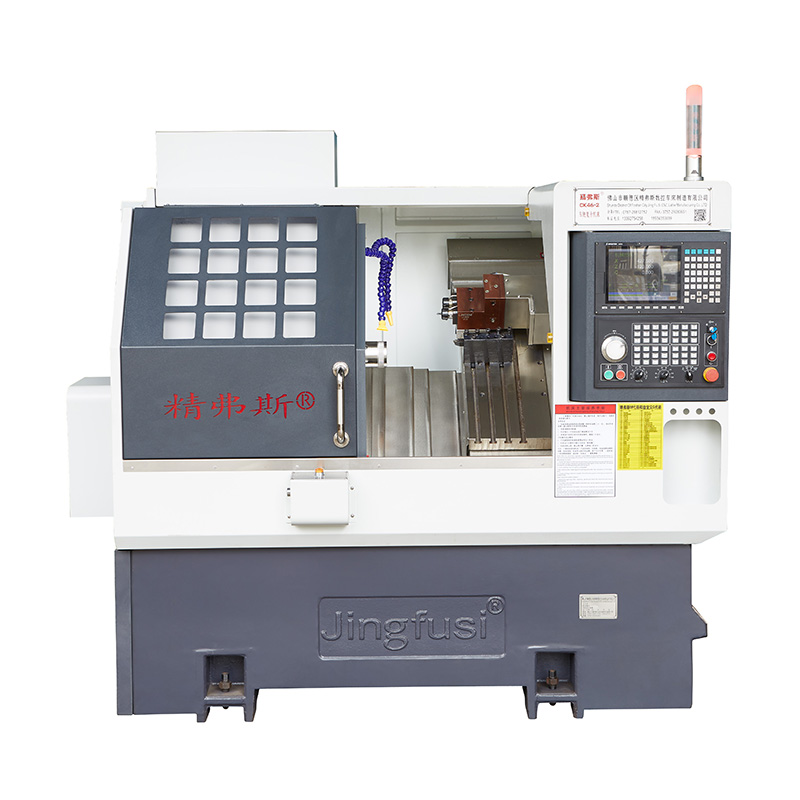

Multifunctional CNC Conversus et Milling Machina
Multifunctional CNC Conversus et Milling Machina
Ut opificem professionalem, volumus tibi praebere Multifunctional CNC Conversi et Milling Machina. Et offeremus tibi optimam post venditionem servitii et opportunam traditionem.
Model:CK46T-600
Mitte Inquisitionem
depictio producti
Sequens est introductio qualitatis Multifunctionalis CNC Conversi et Milling Machina
, sperans te adiuvare melius intelligere Multifunctional CNC Conversus et Milling Machina
Exspectate clientes novos et veteres pergere ad cooperandum nobis ad melius futurum creandum!
Product Details
Parameter List
| project | Content | unitas | CK52T-600 | CK76T-600 | CK46T-600 |
| dispensando scope | Maximum gyrationis diameter fusi | mm | 800 | ||
| genus obstructionum | mm | Ø 180 ~400 | |||
| Maximum conversionis longitudinis | mm | 560 | |||
| Maxime talea diameter | mm | Ø 51 ~ 55 | Ø 72 | 45 | |
| axis principalem |
Genus fusum caput |
|
A2-6 | A2-8 | A2-5 |
| Fusum per foramen diametri | mm | Ø 66 | 86 | Ø 56 | |
| Maximum fusum celeritatem | rpm | 4200 | 3200 | 6000 | |
| Fusum set celeritas | rpm | 1 ~ 3500 | 1 ~2500 | 1 ~4500 | |
| pascere | Maxime peregrinatione X / Z axis | mm | 230/600 | ||
| Z-axis ictu effective | mm | 570 | |||
| Maxime ieiunium motus X / Z axis | m/min | 24 | |||
| X / Z axis occasum ad ieiunium motus | m/min | 16/18 | |||
| X / Z axis cylindro stupra specifications | mm | 40 | |||
| X / Z axi METIOR specifications | mm | 35/45 | |||
| Duodecim situm servo turri | Duodecim situm servo turris centrum altitudinis |
|
100 | ||
| Cultrum turrim oppositum marginem (diam exteriorem) | mm | 385 | |||
| Centrum altitudo turris | mm | 100 | |||
| Numerus laminarum turritum | fix | 12 | |||
| Invasio diametri instrumentum processus adjacent | mm | Ø180 | |||
| Certa instrumentum possessor magnitudine | mm | 25X25 | |||
| Diameter cultrum possessor manubrium | mm | 25 | |||
| electrica machinamenta | Pelagus motricium potentia / torque | KW/Nm | 11KW/aestimavit 72Nm | 15KW/aestimavit 98Nm | 7.5 KW/rated 47Nm |
| X/Z-axis motor potentia/torque | KW/Nm | Yaskawa 1.8KW/11.5Nm. Libitum novum generationis 2.4 KW/rated 11.5Nm | |||
| Virtus / torques turris instrumentum mutantur motricium | KW/Nm | Nova generatio 1.0 KW/3.1NM | |||
| Refrigerium ratio motricium potentiae | KW | 0.3 | |||
| Princeps pressura refrigerandi ratio motricium virtutis | KW | 3 | |||
| Tailstock | Tailstock plaga | mm | 420 | ||
| Maxime plaga tailstock eiector pin | mm | 100 | |||
| Tailstock eiector pin coegi forma |
|
Hydraulica, fortis rigoris | |||
| Tailstock top acus pyramidis foraminis cerei | MK | Mohs 5 #, in machinis subtiliter non fabrefacta vel stamen. | |||
| Maximum inter extremum et monax | mm | 690 | |||
| alius | lecto inclinatione | ° | XXX ° vel XV ° | ||
| Apparatus instrumentum longitudinis X latitudinis X altitudo | mm | 2500X1600X1700 | |||
| Pondus totius machinae | KG | Totum pondus totius machinae est 4500KG, cum libitum pondus totius 3500KG, minus 10000 Yuan | |||
| Summa potentia | kw | 20 | |||
| Mediocris potentia consummatio | kw/h* | 3 | |||
Machina tool Sagaciter
| Apparatus accurate, Jingfus vexillum factor | ||||||||
| Maior test item | Schematic diagram | Deprehensio modum |
Factory vexillum |
|||||
| Fusum radialis pulsu |
|
Deprehendere runout exterioris pyramidis | 0.0025 | |||||
| X-axis repetere situ |
|
Deprehendere iteratae positionis X-axis. Nota: Primum praedicere de 50 temporibus, ut error machinae frigidae et machinae calidae defigendo, et deinde positionis repetitae deprehendas. | 0.0025 | |||||
| Z-axis repetere situ |
 |
Detege positiones repetitas in Z axe. Nota: Primum praedicere de 50 temporibus, ut error machinae frigidae et machinae calidae defigendo, et deinde positionis repetitae deprehendas. | 0.0025 | |||||
| Si mos mos ISO vel VD1 accurate ipsius X/Z/Y axem probare vult, tempore contractus scribendi definietur. Emptorem probare debet hoc item simul initialis acceptionis Jingfusi Factory. | ||||||||
