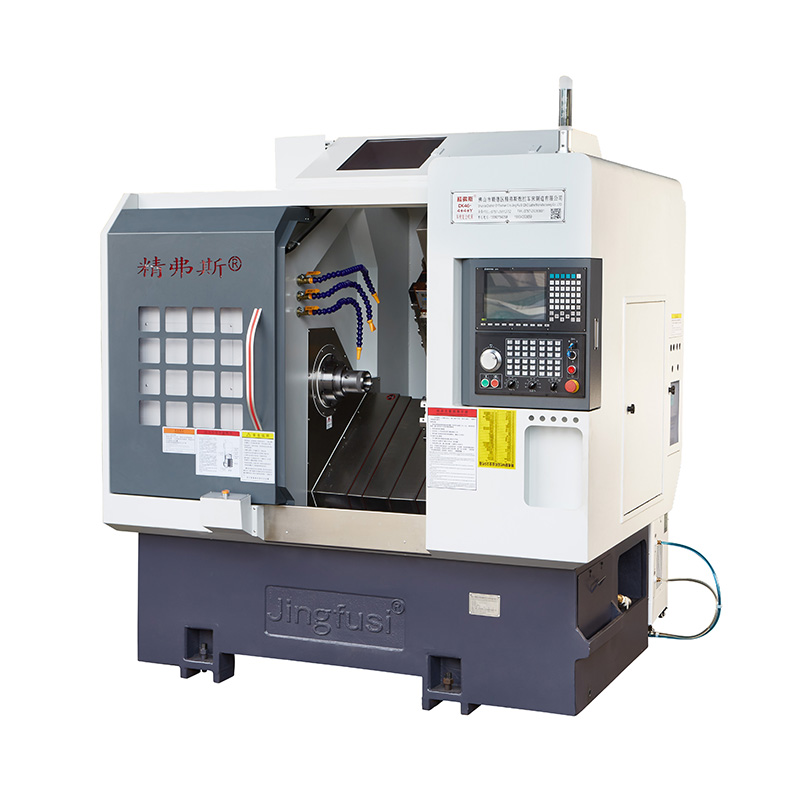

CNC Conversus milling compositum machining centrum

Et cnc conversus milling compositum machining centrum est specimen ad vestibulum intricata et altus precise gyratorius components. Dat completionem maioris, si non omnes ex machining operationes in unum setup. Hoc non praestat praecisione sed etiam auget productivity et sumptus-efficaciam.

Model:CK46-4+4+Y

Mitte Inquisitionem

depictio producti

Characteres CNC Conversus milling compositis machining centrum:

Minimized clamping: decrescit opus ad plures clamping operationes, enhancing et efficientiam et accurate.

Celeri instrumentum commutationes: sustinet summus celeritas instrumentum mutationes, simplifying tool Ordinatio pro magis convenient machining.

Comprehensive machining: offert a range of munera ad faciliorem compositum dispensando de fine facies et laterum, enabling versatile machinans elit.

Machina Travel Diagram

CNC Turning Milling Compound Machining Center

Product Details

Parameter List

item	Model of Lathe	unitas	CK46-4 + IV +	CK52-4 + IV + y
Processing scope	Lectus in lecto	mm	Dø D
	Maxime conversus exteriores circuli longitudinem	mm	320
	Maximum Bar diameter	mm	Diam XLV	Diam LI LV
principalem axem	Type fusum caput		A2-5	A2-6

	Fusum per-foraminis diameter	mm	Diam LVI	Diam LXVI
	Maximum Spindle celeritate	R / min	(VI) (Set (IV) D)	(IV) D (Pone ad MMMD)
pascere	Efficens Travel ex X / Z / Axis A	mm	800/470/260

	Maxime ieiunium motus ex X / z / axis	M / mea	XXIV (occasum XVIII) / XXIV (occasum XVIII) / XV (occasum VIII)
	X / z / y axis stupra virga	mm	32/32/25
	X / z / A axis rail	mm	35/35/25
CORIFER	Octo Statio Turret	PCs	VIII statio, potest instructum cum duplex foraminis tool holders, libitum cum XII statio
Caput	Power caput instrumentum tenens formam		Er25


	Power caput tool	PCs	Z-Axis IV + X-axis IV, cum IV additional fixum tool holders installed
	Maxime celeritas potentia caput	R / min	(VI) (set ad (IV)), potest esse communiter ad processu products ex (IV)
	Intervallum inter potentia caput sagittam et hastile	mm	65
electrica machinery	Main motricium potentia / Torque	KW / NM	Generatio 7.5KW, 47.75nm. Steel partes cum processus facultatem in super LXXX potest esse optionally instructi 11kw, 70.03nm

	X / z / y axis motricium potentia / torque	KW / NM	1.3KW / 8.39NM
	X / Z Power caput motricium potentia / Torque	KW / NM	1.7 KW / 8NM
	Maxime celeritas potentia caput motricium	R / min	5000
alius	Fusum positioning fregit fabrica		HYDRAULICUS


	Lecto inclinatio	°	XXXV °
	Apparatus instrumentum longitudinem x latitudine x altitudine	mm	2200x1580xx1900
	Totalis pondus totius machinae	Kg	3430
	Summa	KW	13
	Mediocris potentia consummatio	KW / h	2

Machina tool accurate

Apparatus accurate, Jingfus factor Latin:
Maior test item	Schematic diagram	Factory vexillum


Fusum radialis pulsu		Deprehendere runout de pyramidis	0.0035


X Axis repetere situ		Deprehendere repetita positioning X axis. Nota primum praedicere de L temporibus offset error frigoris engine calidum engine et deprehendere repetita positioning.	0.003


Z-axis repetere situ		Detect repetita positioning in z axis. Nota primum praedicere de L temporibus offset error frigoris engine calidum engine et deprehendere repetita positioning.	0.003


Y Axis repetere situ		Deprehendere repetita positioning in axis y. Nota primum praedicere de L temporibus offset error frigoris engine calidum engine et deprehendere repetita positioning.	0.004


C axis repetere situ		Detect repositioning C-Axis fixum punctum note: primum praedicere de L temporibus offset errorem frigoris engine et calidum engine et deprehendere repetita positioning	XX arcu seconds


C axem positus gyratorius		Deprehendere temere situ accurate C-Axe, Nota: primo praedicere de L temporibus offset errorem frigoris engine calidum engine et reprimendam repetita occasus	LXXII arcum seconds


Power caput clamping beat		Pulchra	0.015

Power caput clamping beat		Clamping verberans	0.01

Si mos vult temptare ISO vel VD1 accurate X / Z / Axis AXIS, erit determinari tempore scribere contractus. Et mos est probare hoc item simul in initial acceptatio Jingfusi Factory.
