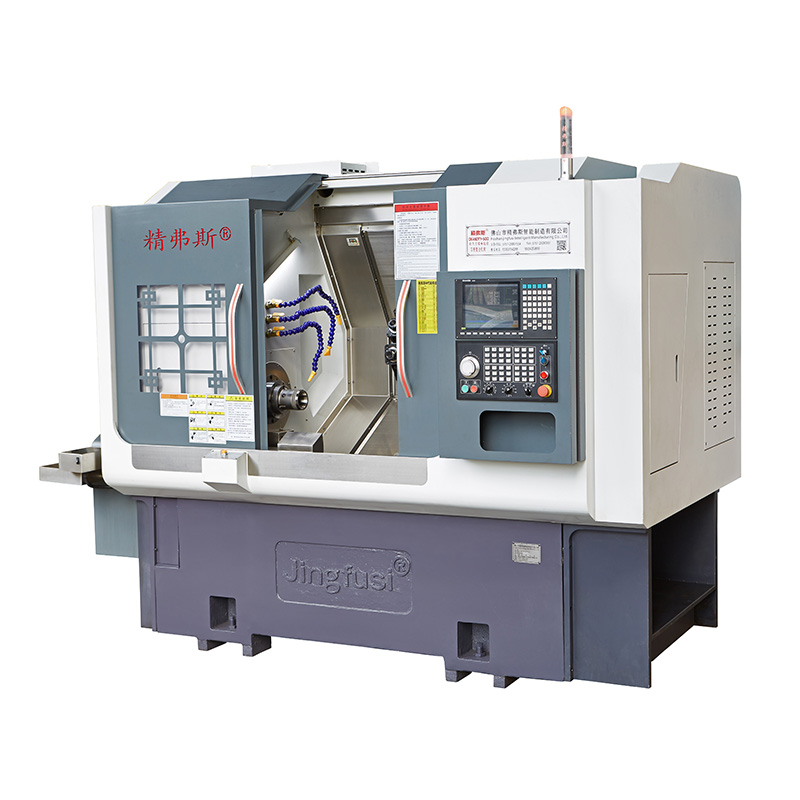

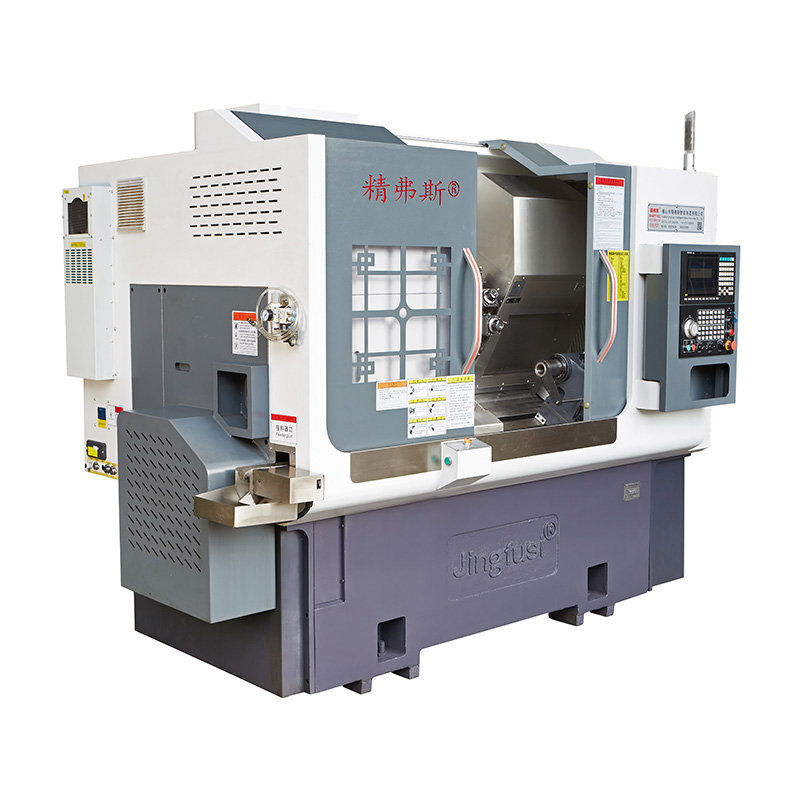

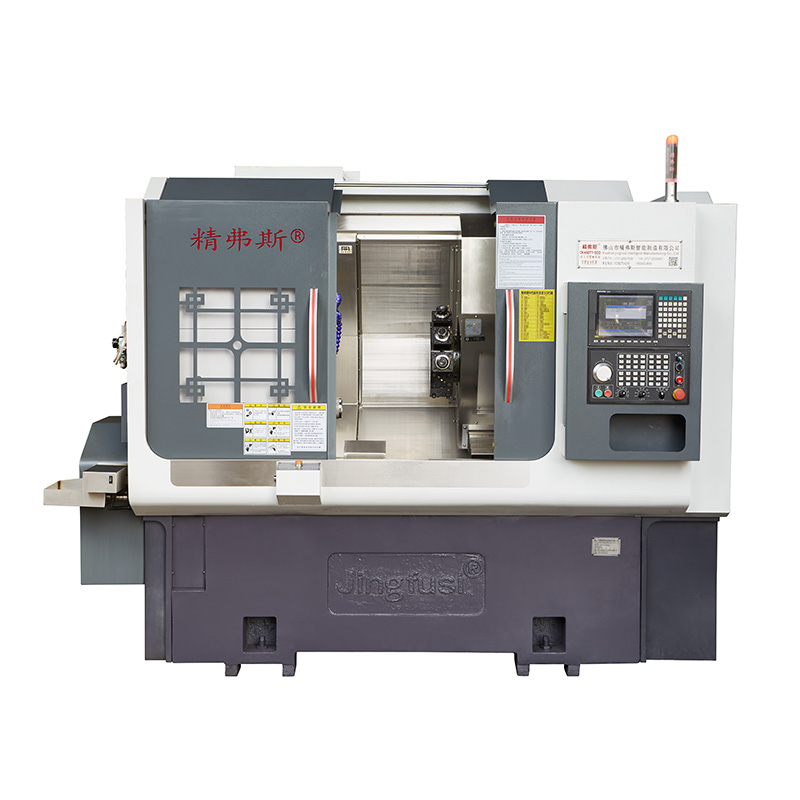

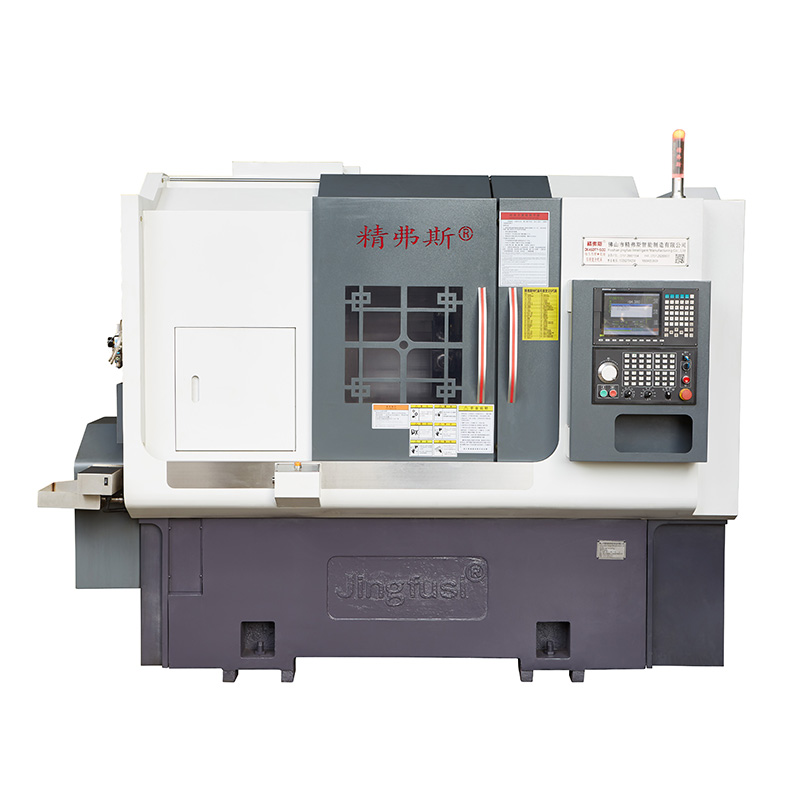

High-celeritate Power Turret conversus et Milling compositis Machina

Haec Jingfusi® High-celeritate Power Turret conversus et milling compositum machinis potest praestare utrumque conversus et milling res in amplis materiae, inter metalla, plastica, et magis. Conversus est usus ad cylindricum features, cum milling est usus ad plana et contumi superficierum.

Model:CK46DTY

Mitte Inquisitionem

depictio producti

Ingfusi® High-celeritate Power Turret conversus et milling compositis apparatus est versatile cnc machining instrumentum disposito summus celeritas et praecisione machining. Praecipue idoneam ad vestibulum components cum intricata features et postulans specifications.

Machina Travel Diagram

High-speed Power Turret Turning and Milling Compound Machine

Product Details

Parameter List

item	Model of Lathe	unitas	Ck46dty	Ck52dty
Processing scope	Maximam gyrationis diameter de fusum	mm	Dø DC
	Maxime conversus exteriores circuli longitudinem	mm	300
	Maximum Bar diameter	mm	Diam XLV	Diam LV
principalem axem	Maximum Spindle celeritate	R / min	(VI) (occasum (IV) D)	(IV) CC (occasum MMMD)

	Type fusum caput		A2-5	A2-6
	Fusum per-foraminis diameter	mm	Diam LVI	Diam LXVI
pascere	X / z / y axis maximum plaga	mm	DCCC / CD / ± LX


	XC ° Power caput transiens per centrum de fusum	mm	60
	Maxime ieiunium motus ex X / z / axis	M / mea	XXIV (occasum XVIII) / XXIV (occasum XVIII) / XV (occasum XII)
	X / z / y axis stupra virga	mm	32/32/32
	X / z / y axis cylindro semita	mm	35/35/35
Power Turret	Power Turret Model (Power Turret)	BMT	BMT45, libitum BMT55

	Power caput collet	Est	Er25
	Fixum Tool Holder Size	mm	25x25
	Perit possessor Shank diameter	mm	Ø25
Tailstock	Main motricium potentia / Torque	KW / NM	7.5 KW / rated 47nm	11Kw / rated 72nm


	X / z / y axis motricium potentia / torque	KW / NM	Yaskawa 1.8kW / 11.5N. Libitum New Generation2.4 KW / rated 11.5nm
	Maxime celeritas de Turret Power motricium	R / min	(LXXX) (Power caput ≤7000 mutatio, XC ° Power caput ≤6000 Mutare)
	Power caput motricium potentia / Torque	KW / NM	8,5 KW / Rated 16.5nm
	Power / Torque de Turris Tool Motending motricium	KW / NM	Generation.0 KW /3.1nm
alius	Fusum positioning fregit fabrica		HYDRAULICUS


	Lecto inclinatio	°	XXXV °
	Apparatus instrumentum longitudinem x latitudine x altitudine	mm	2200x1500x1900
	Totalis pondus totius machinae	Kg	3900kg
	Summa	KW	15
	Mediocris potentia consummatio	KW / h	3

Machina tool accurate

Apparatus accurate, Jingfus factor Latin:
Maior test item	Schematic diagram	Factory vexillum


Fusum radialis pulsu		Deprehendere runout de pyramidis	0.0035


X Axis repetere situ		Deprehendere repetita positioning X axis. Nota primum praedicere de L temporibus offset error frigoris engine calidum engine et deprehendere repetita positioning.	0.003


Z-axis repetere situ		Detect repetita positioning in z axis. Nota primum praedicere de L temporibus offset error frigoris engine calidum engine et deprehendere repetita positioning.	0.003


Y Axis repetere situ		Deprehendere repetita positioning in axis y. Nota primum praedicere de L temporibus offset error frigoris engine calidum engine et deprehendere repetita positioning.	0.004


C axis repetere situ		Detect repositioning C-Axis fixum punctum note: primum praedicere de L temporibus offset errorem frigoris engine et calidum engine et deprehendere repetita positioning	XX arcu seconds


C axem positus gyratorius		Deprehendere temere situ accurate C-Axe, Nota: primo praedicere de L temporibus offset errorem frigoris engine calidum engine et reprimendam repetita occasus	LXXII arcum seconds


Power caput clamping beat		Pulchra	0.015

Power caput clamping beat		Clamping verberans	0.01

Si mos vult temptare ISO vel VD1 accurate X / Z / Axis AXIS, erit determinari tempore scribere contractus. Et mos est probare hoc item simul in initial acceptatio Jingfusi Factory.
